When building Nuon, the central design challenge we faced was how to allow vendors to manage an app in a customer’s cloud account without requiring cross-account access. Through multiple iterations — and a lot of learning things the hard way — we have arrived at our current architecture, built around the Nuon Runner.

​
Overview

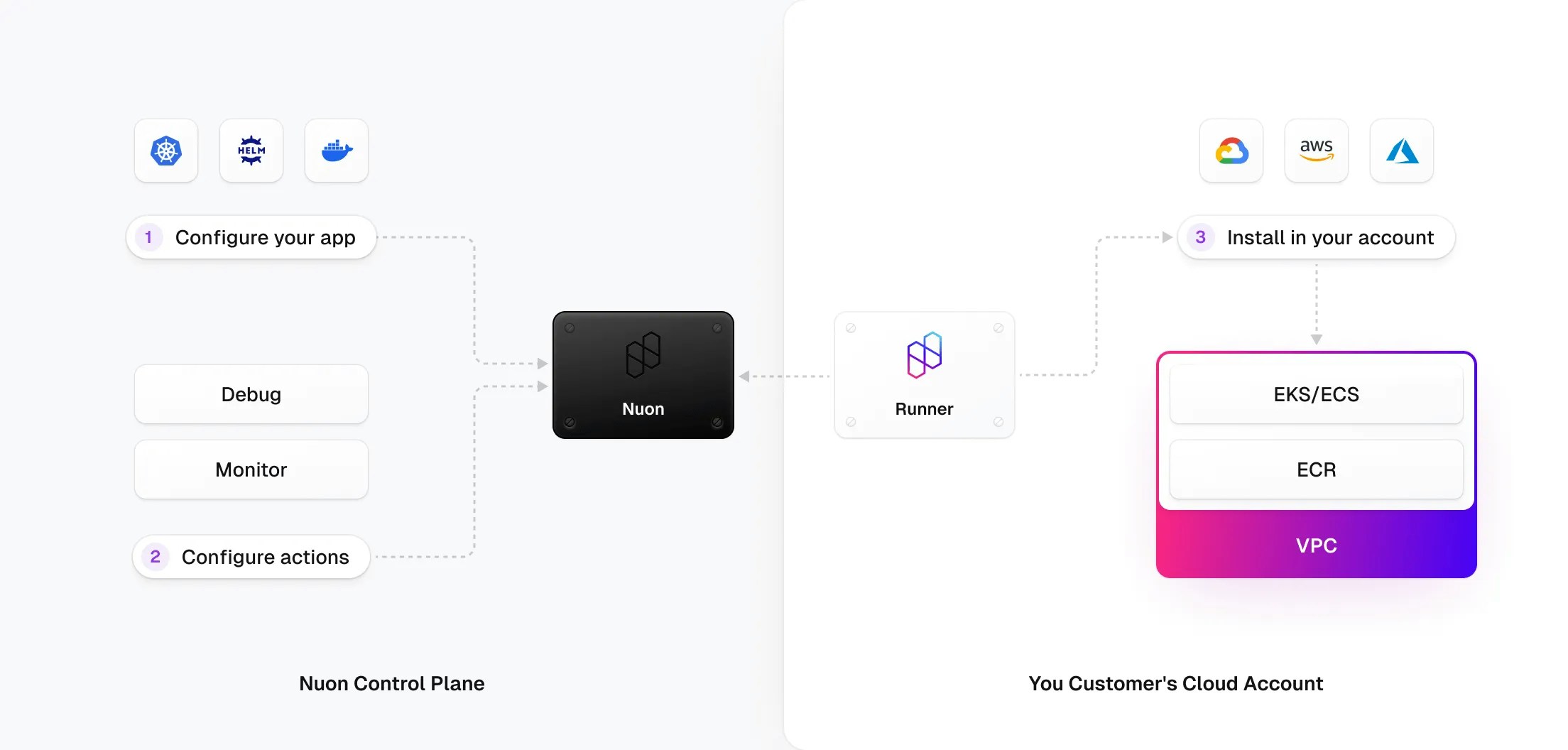

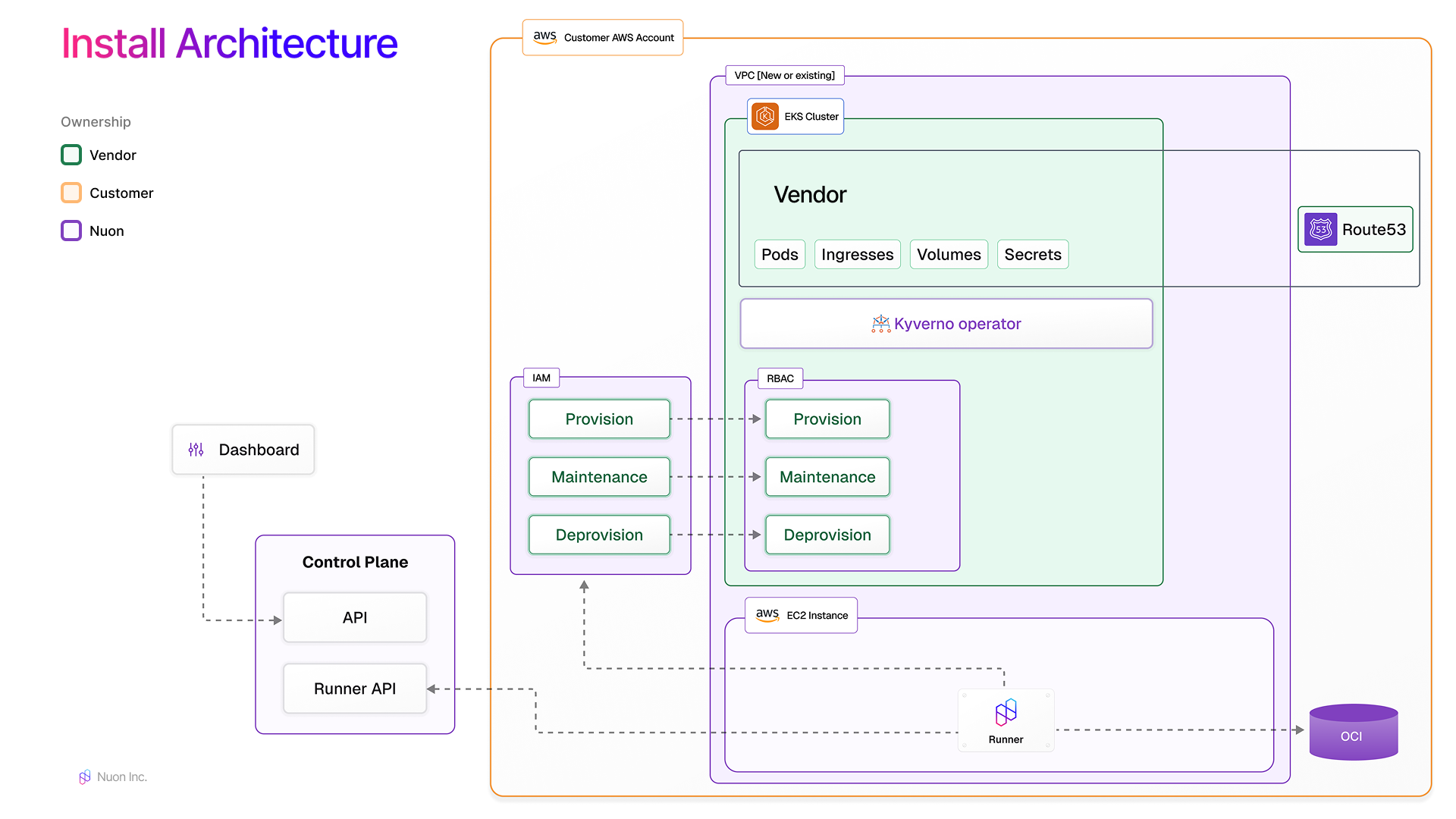

At a high level, the Nuon platform consists of a Control Plane, remotely controlling Runners deployed into different customer accounts. The Control Plane does not send commands to the Runners. Instead, the Runners are egress-only and poll the Control Plane, waiting to be told to run a job. This allows the Control Plane to orchestrate jobs for all the Runners, without having any access to the accounts the Runners are hosted in. No cross-account access is required to provision, maintain, and deprovision an install. runner-architecture Now that you have a high-level view of the architecture, let’s dive into the details.

​
The Install Runner

The Install Runner itself is pretty simple. It is a stateless, stand-alone Golang binary, and it does three things:
  1. Polls the Control Plane for jobs.
  2. Runs jobs.
  3. Pipes logs from those jobs to the Control Plane.
These are logs from the job itself, such as the output from helm install or terraform apply. These are not application logs. The Install Runner does not collect logs from your application.
The level of access the Install Runner has within the customer account can be controlled via permissions and policies. It can also be disabled and re-enabled by the customer if they don’t want it running at all times.

​
Provisioning The Install Runner

When the operator of Nuon initiates a customer install, Nuon generates a cloud stack template e.g., AWS CloudFormation, Azure Resource Manager, Google Cloud Deployment Manager. The operator shares the link to this template with the customer who deploys the stack template in their cloud account, which creates a VPC, networking, and a VM. Docker runs in the VM including a container with the Install Runner. There is also a management system daemon on the VM that the Nuon Control plane uses to update and restart the Install Runner as needed.

​
The Nuon Control Plane

The Control Plane is a more complex piece of machinery than the Install Runner. It is capable of orchestrating and monitoring jobs across many numbers of Install Runners, and acts as a single pane of glass across all of your app installs in all of your customers’ environments.

​
The Control API

The central component of the Control Plane is the Control API. This is the interface used to orchestrate and inspect apps, installs, and jobs. The Dashboard and CLI are built on top of this, and you can integrate with it yourself to build custom interfaces for both internal and customer use.
The Control Plane in Nuon Cloud is multi-tenant, although we do logically isolate data and resources by org. Users evaluating Nuon or companies with emerging BYOC requirements, use Nuon Cloud. However, we also can deploy Nuon as a BYOC app i.e., we use Nuon to install Nuon into a Nuon customer’s cloud account. The BYOC Nuon app can be inspected in this GitHub repository.

​
The Install Runner API

We maintain a separate API for Runners to interact with. This is the API they poll for jobs, and write logs and metrics to.

​
The Build Runner

The first step to provisioning your app components in an install is building an OCI artifact for Install Runners to pull. Because all of your Installs will be using the same artifacts, we provision a Build Runner for you for your org in the Control Plane. This is exactly the same executable used in Installs, and it works exactly the same way, except it only runs build jobs. This is the only part of the Control Plane that touches your source code and build artifacts.
While the rest of the Control Plane in Nuon Cloud is multi-tenant, Build Runners are always single-tenant. Each Runner is deployed to its own host and does not share any resources with other Install Runners.
