Collect Install Telemetry - Nuon documentation

Nuon’s telemetry relay lets you collect OpenTelemetry data from customer installs in your own observability backend. Configure the destination once in your Nuon BYOC deployment, then choose which installs can forward telemetry. Backend credentials stay with the relay; you do not need to distribute them to customer environments.

This guide is for Nuon BYOC customers. Work with Nuon to deploy and enable the relay before enabling downstream installs. Relay availability alone is not a guarantee of lossless delivery; review delivery limits.

How it works

┌──────────────────┐   ┌──────────────────┐
│ Customer install │   │ Your Nuon BYOC   │
│ Application      │   │                  │
│   ↓ private OTLP │   │                  │   ┌──────────┐
│ Runner Collector │──▶│ Telemetry relay  │──▶│ Backend  │
│                  │   │ Verified IDs     │   └──────────┘
│                  │   │ Backend secrets  │
└──────────────────┘   └──────────────────┘

Your application sends OTLP logs, metrics, or traces to a private endpoint in its install’s cloud network.
A Collector managed by the install runner buffers and forwards the data to your relay over HTTPS, using automatically renewed, short-lived Nuon credentials.
The relay verifies the sending runner and attaches authoritative organization, app, install, and runner IDs.
The relay forwards the data to your configured OTLP/HTTP backend.

All enabled installs use the same destination. Your backend provides storage, queries, dashboards, and alerting. Enabling forwarding does not instrument your application or automatically scrape its metrics: configure your application’s OpenTelemetry SDK, agent, or Collector to send data to the install endpoint. This is separate from runner audit-log export and telemetry about the Nuon control plane itself. The audit-log telemetry-export-config secret does not configure this relay.

Configure your relay once

These steps apply to the stack that hosts your Nuon BYOC control plane, not each downstream customer install. You need an OTLP/HTTP backend that accepts the signals you intend to send and authenticates through an Authorization header.

Prepare the BYOC deployment

Coordinate relay setup with Nuon. For existing deployments, Nuon will confirm compatible control-plane, runner, and stack versions before you enable collection.

Supply the backend secrets

Update the values of these existing BYOC secrets in AWS Secrets Manager or GCP Secret Manager:

telemetry_otlp_endpoint: HTTPS OTLP/HTTP base URL, for example https://otel.example.com/otlp. Do not append /v1/logs, /v1/metrics, or /v1/traces.
telemetry_otlp_authorization: Complete backend Authorization header value, including its Basic or Bearer prefix.

Open AWS Secrets Manager in the account and region hosting your Nuon BYOC deployment.
Find the existing secrets corresponding to telemetry_otlp_endpoint and telemetry_otlp_authorization for your BYOC install, not a downstream customer install.
Update each secret’s value: the endpoint secret contains the base URL, and the authorization secret contains the complete header value. Save both changes.
Let Nuon know the secrets are ready to sync and the relay can be enabled. Do not send Nuon the secret values.

Open Secret Manager in the GCP project hosting your Nuon BYOC deployment.
Find the existing secrets corresponding to telemetry_otlp_endpoint and telemetry_otlp_authorization for your BYOC install, not a downstream customer install.
Add a new version to each secret: the endpoint secret contains the base URL, and the authorization secret contains the complete header value. Ensure the new versions are enabled.
Let Nuon know the secrets are ready to sync and the relay can be enabled. Do not send Nuon the secret values.

Keep credentials out of app inputs, Helm values, and source control. No stack update is needed if the secrets already exist.

If either secret is missing, coordinate with Nuon to update your BYOC stack first. Use the current CloudFormation template or Terraform stack configuration to provision the missing secrets with the required values.

Have Nuon enable the relay

Nuon syncs the secrets, runs the relay preflight, enables the relay component, and verifies its deployment and HTTPS endpoint. Supplying secrets alone does not enable the relay. Wait for Nuon to confirm it is ready before enabling downstream installs. Your application will use its install-local endpoint, not this central relay address.

Prepare an install’s private endpoint

These steps apply to each downstream customer install from which you want to collect telemetry. The relay, private stack ingress, and per-install forwarding setting are three independent controls; all must be ready. Private telemetry ingress is enabled by default in current install stacks. Ensure the install’s stack is up to date and its runner is running. No ingress change is needed unless the customer previously disabled it; in that case, re-enable the stack’s telemetry ingress setting. This does not enable per-install forwarding, which you configure in the next section.

AWS CloudFormation
GCP Terraform

Ensure the install uses current VPC and runner stack templates. EnableTelemetryIngress defaults to true. If the customer set it to false, update the stack to set it back to true.The private OTLP/HTTP endpoint uses port 4318, restricted to the install VPC by the runner ingress security groups. Additional AWS infrastructure charges apply.

Ensure the GCP install stack is up to date with runner_enabled = true. The enable_telemetry_ingress setting defaults to true; if the customer set it to false, set it back to true and apply the stack update.The private load balancer uses port 4318. Clients must be in the same region and permitted by the stack’s internal firewall; the default source range is 10.128.0.0/16.The endpoint remains stable across runner replacements and is empty when ingress or the runner is disabled.

Confirm that the install’s stack outputs include a nonempty telemetry_endpoint. For example, using the CLI authenticated to your BYOC control plane:

nuon installs outputs --stack -i "<install-id>"

An endpoint output proves that ingress is provisioned, not that the Collector is enabled or data reaches the backend.

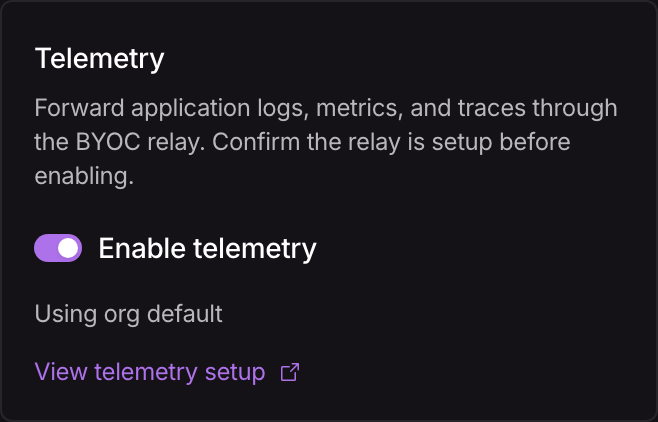

Enable forwarding for the install

Use an API key with access to the install’s organization, against your BYOC API, not the Nuon Cloud API. Set these variables locally; do not commit your API key:

export NUON_API_URL="https://api.<your-root-domain>"
export NUON_API_TOKEN="<your-api-key>"
export NUON_ORG_ID="<org-id>"
export NUON_INSTALL_ID="<install-id>"

Enable forwarding:

curl --fail-with-body --request PATCH \
  "$NUON_API_URL/v1/installs/$NUON_INSTALL_ID/telemetry" \
  --header "Authorization: Bearer $NUON_API_TOKEN" \
  --header "X-Nuon-Org-ID: $NUON_ORG_ID" \
  --header "Content-Type: application/json" \
  --data '{"enabled":true}'

The response is {"enabled":true}. Installs default to disabled. A running runner checks settings every 15 seconds and applies changes without a runner restart; allow time for Collector startup and token issuance. The API response reports the saved setting, not end-to-end delivery health. Read the saved setting at any time:

curl --fail-with-body \
  "$NUON_API_URL/v1/installs/$NUON_INSTALL_ID/telemetry" \
  --header "Authorization: Bearer $NUON_API_TOKEN" \
  --header "X-Nuon-Org-ID: $NUON_ORG_ID"

Send telemetry from your application

Configure these environment variables in your application’s component configuration:

OTEL_EXPORTER_OTLP_PROTOCOL = "http/protobuf"
OTEL_EXPORTER_OTLP_ENDPOINT = "{{ .nuon.install_stack.outputs.telemetry_endpoint }}"

Nuon resolves the template when rendering the component configuration. Outside Nuon templates, use the actual telemetry_endpoint output value. Do not send the literal template string from a shell or application. The endpoint is a base URL. Standard OTLP/HTTP exporters append /v1/metrics, /v1/logs, or /v1/traces for the appropriate signal. If your SDK uses a signal-specific endpoint setting, configure the corresponding full path. You do not need your backend credentials, a runner token, or the central relay URL in the application.

Verify a metric reaches your backend

From a workload or shell with network access to the install’s private endpoint, send one recognizable OTLP/JSON gauge. The HTTP receiver accepts this format as well as the protobuf format recommended for SDKs above. Replace the endpoint placeholder with the actual stack output:

export TELEMETRY_ENDPOINT="<telemetry_endpoint-output>"
timestamp="$(date +%s)000000000"

curl --fail-with-body "$TELEMETRY_ENDPOINT/v1/metrics" \
  --header "Content-Type: application/json" \
  --data @- <<EOF
{
  "resourceMetrics": [{
    "resource": {
      "attributes": [{"key":"service.name","value":{"stringValue":"acme-telemetry-check"}}]
    },
    "scopeMetrics": [{
      "scope": {"name":"acme.telemetry.check"},
      "metrics": [{
        "name":"acme.telemetry.check",
        "description":"Manual install telemetry delivery check",
        "unit":"1",
        "gauge": {"dataPoints":[{"timeUnixNano":"$timestamp","asDouble":1}]}
      }]
    }]
  }]
}
EOF

A successful local response is not proof of backend delivery. Find the metric in your backend (which may normalize its name), check its timestamp and value of 1, and verify the expected install identity below. If you also use logs or traces, send and verify a sample of each; success for metrics does not prove your backend accepts other signals.

Identify the originating install

The relay attaches these verified resource attributes using the authenticated runner identity:

Attribute	Identifies
`nuon.org.id`	Nuon organization
`nuon.app.id`	Nuon application
`nuon.install.id`	Customer install

Caller-supplied copies of these four IDs are removed throughout the payload before the relay stamps the resource. Matching is case-insensitive and includes underscored aliases such as nuon_install_id. This prevents a producer from using these fields to claim another install’s identity; it does not attest to the integrity of the workload. The runner also adds nuon.org.name, nuon.app.name, nuon.install.name, and nuon.install.labels.<key> from its settings. These are useful display and filtering metadata, but the relay does not verify them against the IDs. Other attributes are preserved. The relay sets resource-level nuon.telemetry.source to install for this path. Use resource-aware queries for authoritative filtering. Some backends flatten or rename resource attributes into metric labels; confirm that mapping and its collision behavior before using the labels for dashboards or alerts.

Rotate credentials or disable collection

To rotate backend credentials, update the existing BYOC secrets in your cloud’s secret manager and coordinate with Nuon to sync them, run preflight, and restart the relay deployment. Credentials are loaded at relay pod startup, not automatically on secret changes. You do not need to update credentials in individual customer installs. To disable one install, repeat the PATCH request above with {"enabled":false}. The runner applies the change on its settings refresh. Stop or reconfigure application exporters too, so they do not keep sending to an unavailable Collector. This setting does not remove the stack’s private ingress infrastructure or delete data in your backend. Before asking Nuon to disable the central relay, disable forwarding on its downstream installs. The relay component toggle does not automatically change their settings. Remove private ingress separately if it is no longer needed.

Delivery limits

The runner Collector uses a bounded disk-backed queue and forwards asynchronously. The relay itself has no persistent queue or retry loop. Local acceptance is not a backend acknowledgement, and delivery is not exactly once: retries can produce duplicates, while queue exhaustion, storage failures, permanent rejections, and some authentication or downstream failure responses can lose telemetry. Do not rely on indefinite outage retention or automatic historical backfill. Monitor missing data in your backend and agree on capacity and failure expectations with Nuon before production use. Audit export uses a separate Collector process and queue, but still shares the runner host’s resources.

Troubleshooting

Symptom	Check
`telemetry_endpoint` is missing or empty	Update older stack templates/modules; check private ingress and runner enablement. The API forwarding setting does not provision ingress.
Connection refused or timed out	Confirm the runner and Collector are running, allow time for settings refresh, and check source-network access. On GCP, check the client region and internal firewall.
API reports enabled but no data arrives	Confirm Nuon has enabled the relay, then verify a sample reaches the backend. The API returns desired configuration, not health.
Local export succeeds but the backend has no data	Check the backend’s supported signals, time range, and attribute mapping. Ask Nuon to check relay reachability, token issuance, and destination errors.
Backend authentication fails	Check the complete `Basic` or `Bearer` header in the BYOC secret and coordinate secret sync and relay restart with Nuon. Do not add backend credentials to workloads.
Identity appears missing or conflicting	Query resource attributes and inspect backend flattening. Use the four verified IDs, not names or custom install labels, as authoritative identity.

When contacting Nuon, provide the install ID, signal, sample timestamp, and sanitized error details. Do not include API keys, backend credentials, runner tokens, or sensitive telemetry payloads.
