Nuon supports several different component types that allow you to connect your existing container images, Helm charts, Kubernetes manifests and Terraform code to your app.

​
What is a Component?

A component represents a part of your App. Nuon supports the following component types:

​
How do you configure a component?

A component is configured in an individual <component name>.toml file inside a directory called components in the root of your app directory. e.g., a Helm chart component named grafana would be defined in a file named grafana.toml inside a directory named components. Additional component configuration files can be added to the components directory or another directory in the app directory, and referenced in the Component’s config file. e.g., you can have a values.yaml file for a Helm chart component to deploy observability platform from Grafana Labs located in components/values/grafana You can configure components to use either a public repo (using a public_repo block) or a private GitHub repo (using a connected_repo block). Read more about VCS configuration here.
components/grafana.toml
#:schema https://api.nuon.co/v1/general/config-schema?type=helm
name           	= "grafana"
type           	= "helm_chart"
chart_name     	= "grafana"
namespace      	= "grafana"
storage_driver 	= "configmap"
dependencies   	= ["prometheus"]

[public_repo]
repo 			= "grafana/helm-charts"
directory 		= "charts/grafana"
branch 			= "main"

[[values_file]]
contents 		= "./values/grafana/values.yaml"
By default, every component must have a git repository to store its source files, but you can include them in the app directory and reference the same app repo in the component .toml file. This example shows a component that uses the same repo as the app to store its AWS Terraform module to create the certificate in AWS:
components/certificate.toml

[public_repo]
repo      = "nuonco/example-app-configs"
directory = "grafana/src/components/certificate"
branch    = "main"
If you are iterating and making changes to the source files of a component, running nuon apps sync will not trigger a new build. You need to first push your changes to your repo then create a new build manually using Dashboard UI or CLI after syncing the app. During development, it is recommended to create a branch and use that branch in the component config file.
Component Build

​
Component Management

The CLI exposes many operational commands to manage components. To see all available commands, run: nuon components --help.
Make sure to select an App using nuon apps select before using the nuon components commands, or pass the -a flag to each nuon component command.

​
Component Management

There no longer is a nuon components select command to pin a component. Instead, pass the -c flag to each command to specify the component by its id or name.
Commands for working with components: List Components - List components for an app.
nuon components list
Get a component
nuon components get -c <component_id or component_name>
Delete a component - delete a domponent.
It is not recommended to delete components using the CLI. Instead, manage them by removing a component .toml file from the app directory and then running nuon apps sync.
nuon components delete -c component_id
Print a component config - Print the latest configuration for a component.
nuon components latest-config -c <component_id or component_name>

​
Component Builds

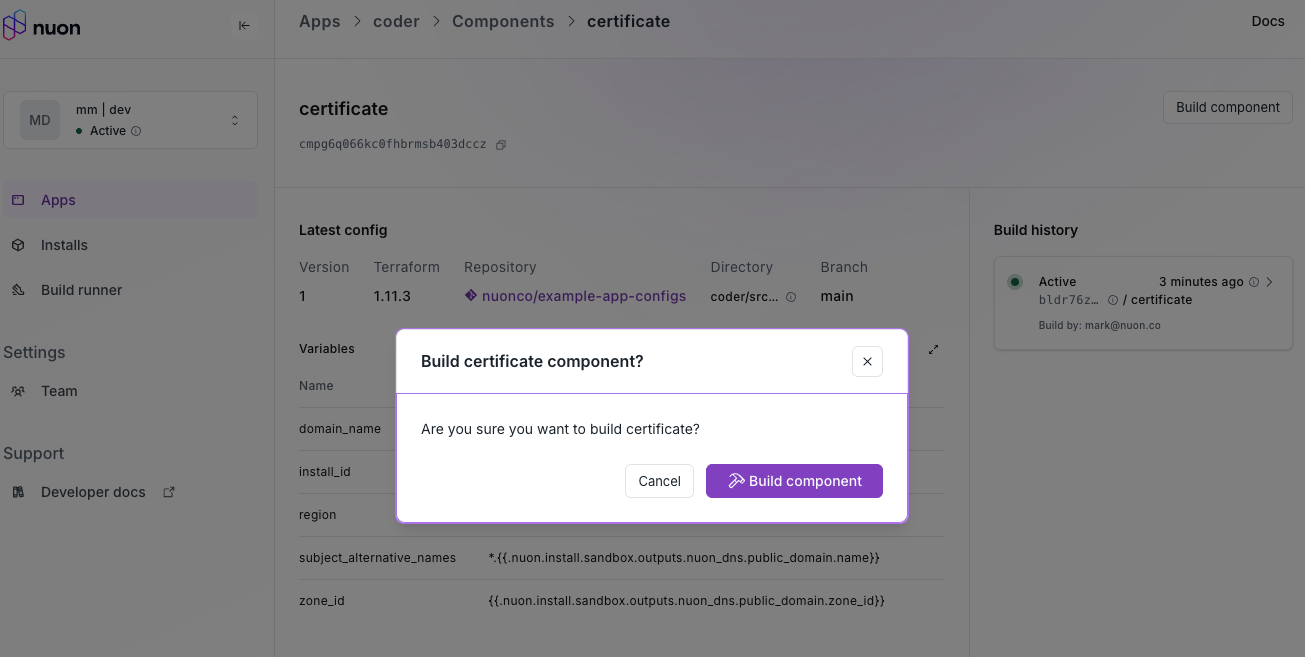

All components must be built before creating an install or updating an install. nuon apps sync for the first time or if a component .toml or related Helm values.yaml has changed will also trigger a build. The release commands support an -auto-build flag which will trigger a build. Any of the following CLI commands can use component_id or component_name with the -c flag to specify which component to build. Create or re-create a Build - Create a build using the latest component configuration in the Dashboard UI or with the CLI. Component Build
nuon builds create -c component_name

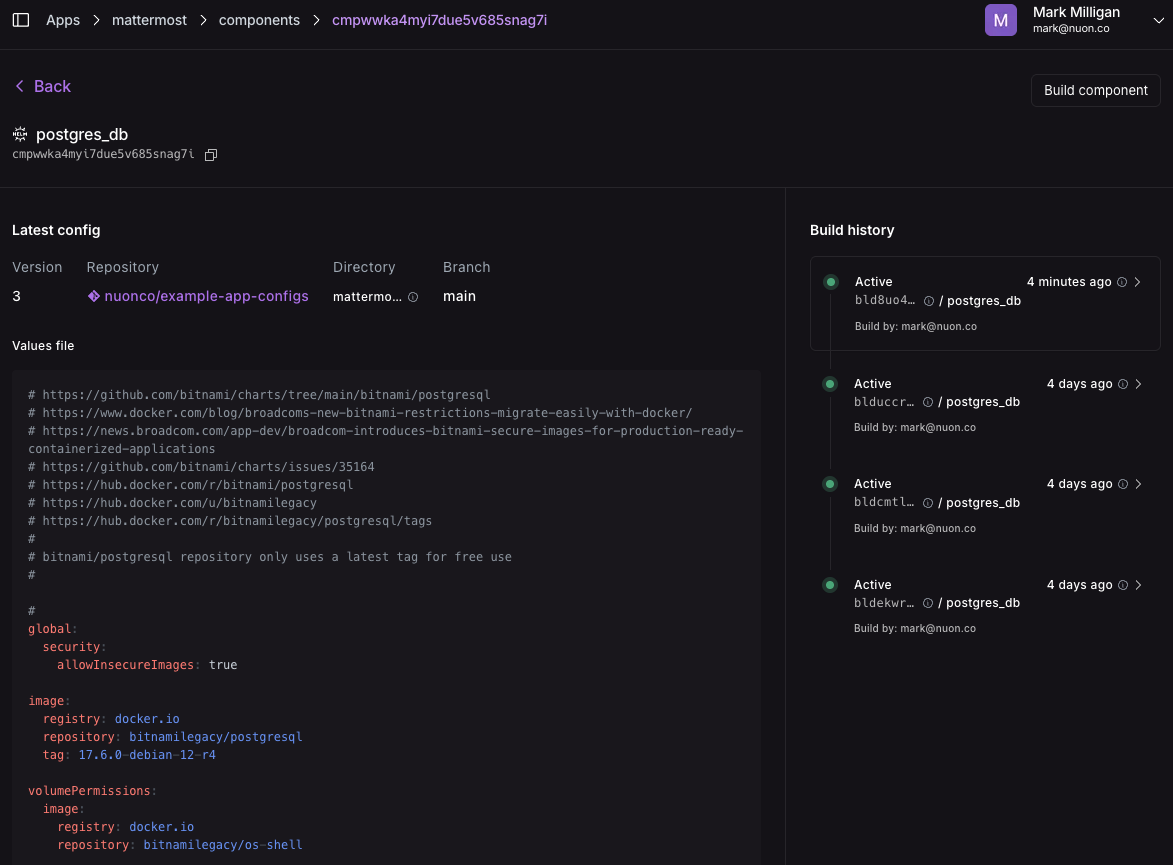

List Builds - List builds for a component with the CLI or Dashboard UI.
nuon builds list -c component_name
If you do not pass the -c flag, all Builds for all components in the currently selected spp will be listed.
Component Builds Get a Build - Print out build details.
nuon builds get -b <build-id> -c component_name

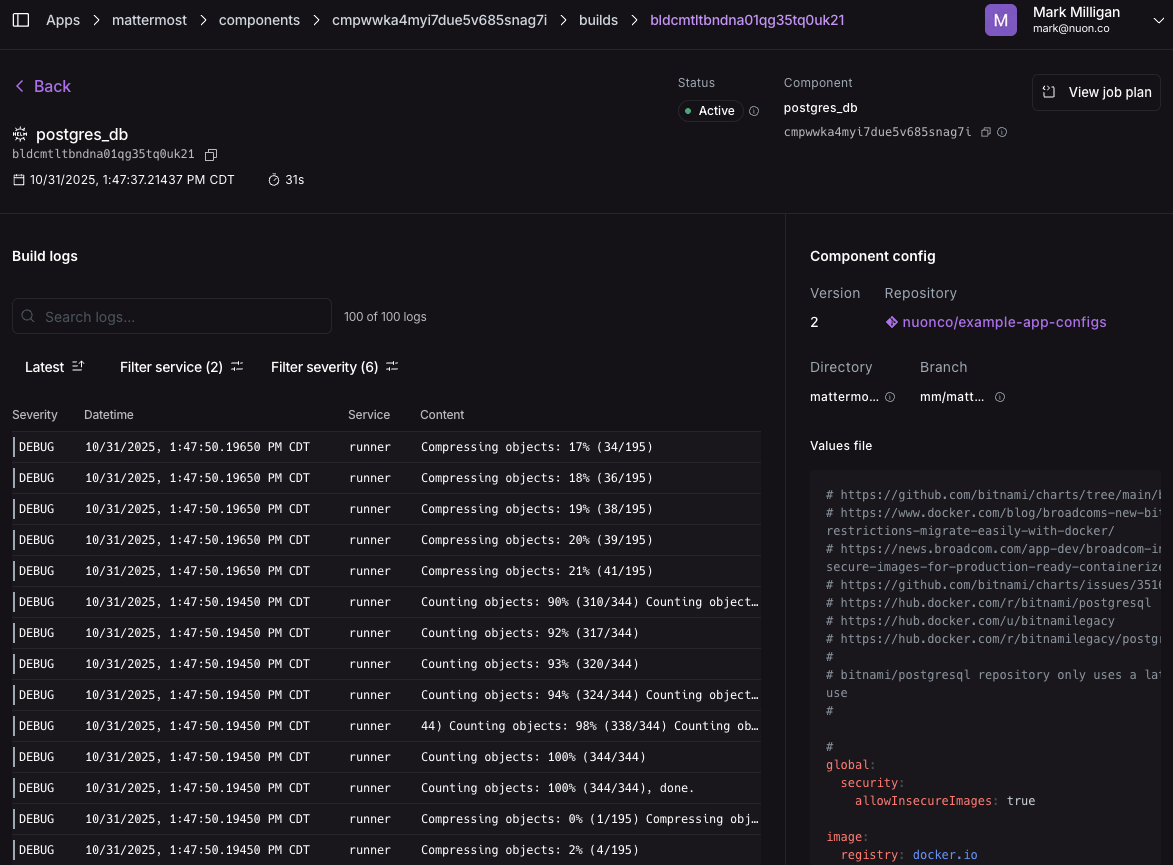

Logs - Show logs for a build by opening the Dashboard UI.
nuon builds logs -b <build-id> -c component_name
Component Build
