Configure runbooks

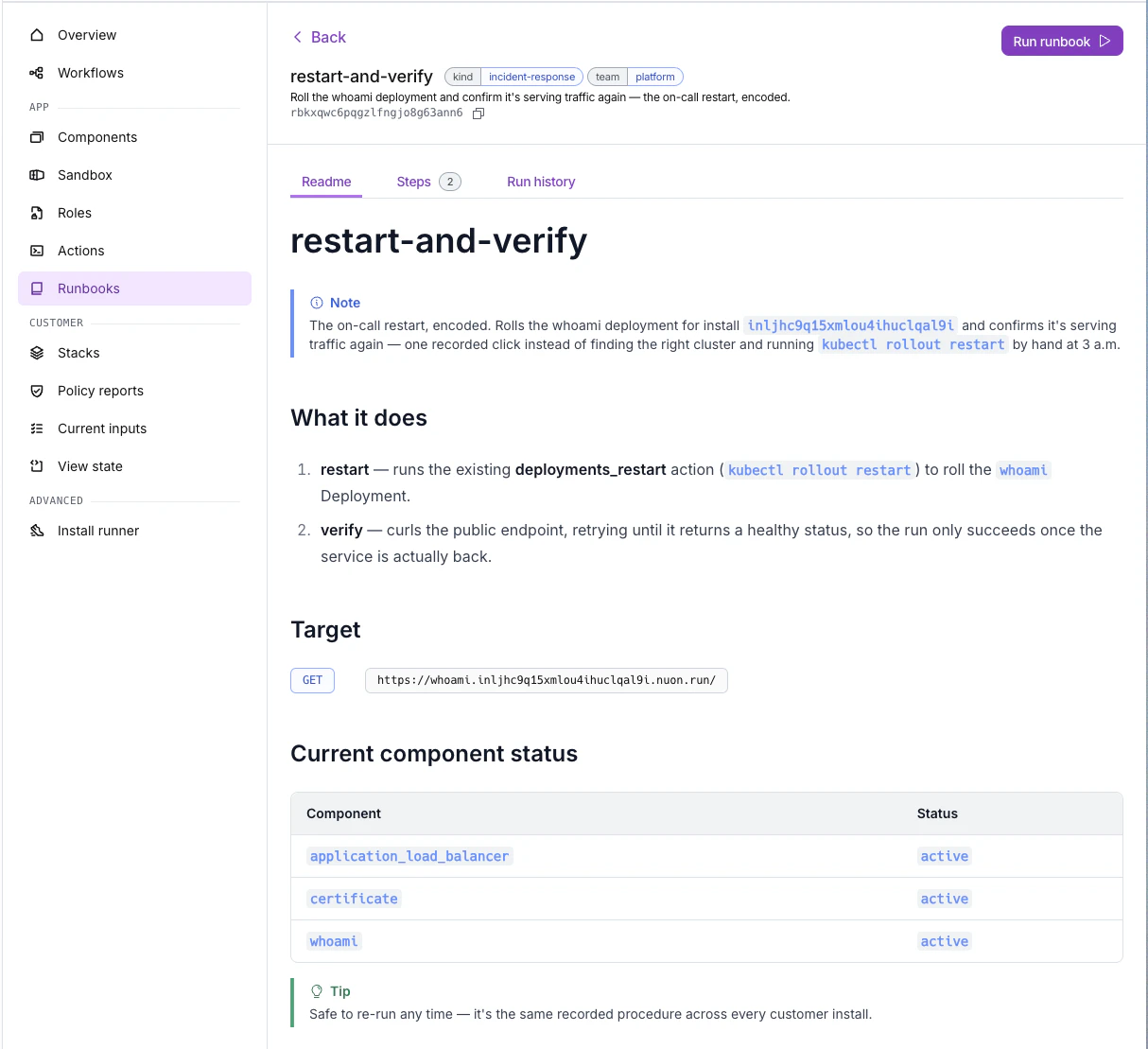

A runbook's detail page in the Nuon dashboard, showing its steps

Runbooks turn a multi-step operational procedure into a single, repeatable artifact you run against an install on demand. Define the sequence once; run it consistently across every install instead of doing it by hand each time. Common uses:

version upgrades
database migrations
data backfills
recovery steps

Each step has a type that determines what it does:

component_deploy — Deploy a component. Set deploy_dependents to also roll out the component’s downstream dependents, in dependency order, or plan_only to check for drift without applying the plan. (deploy is accepted as a legacy alias.)
component_tear_down — Tear down a component. Set tear_down_dependents to also tear down its downstream dependents, with dependents removed first.
action — Run an existing action, or an inline command or script defined directly on the step.
sandbox_reprovision — Reprovision the install’s sandbox infrastructure. Set skip_component_deploys to reprovision the infrastructure only, without redeploying components on top, or plan_only to check for drift without applying or redeploying components.
sandbox_deprovision — Deprovision the install’s sandbox infrastructure.

Steps run in order, and every run is recorded in the install’s workflow history: a durable, auditable record of what ran, when, and against which install.

Where runbooks live

Define runbooks as TOML files in a runbooks/ directory in your app config. Each file is one runbook:

my-app/
├── metadata.toml
├── components/
├── actions/
└── runbooks/
    └── v2.3-update.toml

They sync with the rest of your config via nuon apps sync, run from the app’s working directory in your terminal. Whenever you edit a runbook file locally, re-run nuon apps sync to push the changes to Nuon.

Example

name        = "v2.3-update"
description = "Apply the v2.3 schema migration, then roll out the API."
readme      = "./runbooks/v2.3-update.md"

[[steps]]
name        = "migrate-db"
type        = "action"
action_name = "database-migration"

[[steps]]
name           = "deploy-api"
type           = "component_deploy"
component_name = "api-server"
deploy_dependents = true

[[steps]]
name    = "smoke-test"
type    = "action"
command = "./scripts/smoke-test.sh"
timeout = "5m"

Configuration reference

Runbook

Field	Type	Required	Description
`name`	string	Yes	Name shown in the Runbooks tab and used to identify the runbook during sync.
`description`	string	No	Short description of what the runbook does.
`readme`	string	No	Markdown documentation for the runbook. Supports Go templating and external file sources (HTTP(S) URLs, git, or local paths).
`labels`	map	No	Key/value labels for organizing runbooks.
`steps`	array	Yes	Ordered list of steps to execute. See below.

Step

Field	Type	Required	Description
`name`	string	Yes	Step name shown in the workflow UI and runbook detail page.
`type`	string	Yes	`component_deploy`, `component_tear_down`, `action`, `sandbox_reprovision`, or `sandbox_deprovision`. `deploy` is accepted as a legacy alias.
`component_name`	string	component steps	Component to deploy or tear down. Required when `type = "component_deploy"` or `"component_tear_down"`.
`deploy_dependents`	bool	No	When true, also deploys the component’s transitive dependents (downstream subgraph) in dependency order. Only applies to `component_deploy` steps.
`tear_down_dependents`	bool	No	When true, also tears down the component’s transitive dependents (downstream subgraph), with dependents torn down first. Only applies to `component_tear_down` steps.
`plan_only`	bool	No	When true, generates the plan without applying it. Applies to `component_deploy` and `sandbox_reprovision`; plan-only sandbox steps also skip component redeployment.
`skip_component_deploys`	bool	No	When true, only the sandbox infrastructure is reprovisioned; components are not redeployed on top. Only applies to `sandbox_reprovision` steps.
`action_name`	string	action steps	Name of an existing action to run. Mutually exclusive with the inline fields below.
`command`	string	action steps	Shell command for an inline action. Supports Go templating.
`inline_contents`	string	action steps	Inline script contents, or a reference to an external file. Supports templating and external sources.
`env_vars`	map	No	Environment variables for an inline action step.
`timeout`	string	No	Maximum execution time for an inline action step (Go duration, e.g. `30s`, `5m`).
`role`	string	No	IAM role to assume when executing an inline action step.

An action step uses either action_name (to run a previously defined action) or the inline fields (command / inline_contents) to define an inline action, not both.

Triggering a runbook

Trigger and watch runs from the Runbooks tab in the dashboard, or from the CLI:

# list the runbooks available on an install
nuon runbooks list --install-id <install-id>

Each run is recorded in the install’s workflow history, so you can review the steps, logs, and outcome of any past runbook execution.

A complete example

For a runnable example, see the programmable-runbook-and-readme app config in example-app-configs. It has runbooks for an on-call restart and a smoke test, plus rendered READMEs that embed them.
