Configure app branches

This guide walks through setting up an app branch on an existing app: writing the branch config, sorting your installs into deployment groups, triggering runs, and approving them.

Prerequisites

An app already synced to Nuon, with at least one install.
The Nuon CLI installed and authenticated (nuon auth login).
For pull request previews, the Nuon GitHub App connected in your org for the repository’s owner. See connecting a repository.

Every branch of a given app must point at the same repository, and an install can belong to only one branch at a time. See rules and limits before you plan more than one branch.

Write a branch config

Add a branch.toml file to the root of your app config directory, next to metadata.toml. It declares the branch name, the repo and branch to track, and the deployment groups the rollout moves through.

branch.toml

name = "main"

[connected_repo]
repo      = "acmeco/my-app-config"
directory = "."
branch    = "main"

[[install_groups]]
name  = "staging"
order = 1
[install_groups.label_selector]
env = "staging"

[[install_groups]]
name  = "production"
order = 2
[install_groups.label_selector]
env = "prod"

Three things to get right:

The repo block. Use [connected_repo] for a repository connected through the Nuon GitHub App, or [public_repo] for a public one. Exactly one of the two, and repo, directory, and branch are all required. directory is the path to your app config within the repo, or "." if it is at the root.
name is the branch’s name in Nuon, and it comes from this key, not from the filename. It is what you pass to nuon sync --branch.
Group order. order decides which group deploys first, lowest first. List your groups in the order you want them to run.

Every branch needs one of [connected_repo] or [public_repo]: the repo block is what the deployment groups sync against.

Every field is documented in the branch config reference.

Selecting installs for a group

Each group picks its installs one of two ways: a label_selector, or an explicit list (install_ids and install_names, which may be combined; names resolve to IDs at sync time). A label selector cannot be combined with an explicit list in the same group:

# Recommended: matches any install carrying all of these labels.
[[install_groups]]
name  = "production"
order = 2
[install_groups.label_selector]
env  = "prod"
tier = "enterprise"

# Explicit names, resolved to install IDs when you sync.
[[install_groups]]
name          = "pilot"
order         = 1
install_names = ["customer-acme"]

# Explicit IDs.
[[install_groups]]
name        = "pilot"
order       = 1
install_ids = ["inlbmky2fz8qvrxp3d7twahjc9"]

Prefer label_selector: it re-evaluates on every run, so group membership follows your labels with no re-sync. Explicit install_names are resolved to IDs once, at sync time.

One branch or several

Two layouts are supported, and they are mutually exclusive:

branch.toml: a single branch. This is what most apps want, and what the rest of this guide assumes.
branches/*.toml: one file per branch, for tracking several branches of the same repo (a staging branch and a main branch, for example). The name key inside each file sets the branch name; the filename does not.

Label your installs

A label selector only matches installs that actually carry the labels. Set them with the CLI:

nuon installs labels set --install-id customer-acme env=prod tier=enterprise

Labels are key/value pairs, passed as positional key=value arguments. To inspect or remove them:

nuon installs labels list --install-id customer-acme
nuon installs labels unset --install-id customer-acme tier

You can also confirm which installs a selector will match before you run anything:

nuon installs list --labels env=prod --labels tier=enterprise --limit 200

All labels passed to --labels must match, so this is the same AND semantics a group’s label_selector uses. On a fleet of more than 20 installs, pass --limit at least your install count to list every match.

Prefer keeping labels in install config files (a [labels] table, one file per install) so they are reviewed like the rest of your config, and apply them with nuon installs sync -a <app-id> -d installs/. To start from an install that already exists, export it: nuon installs generate-config -i <install-id> > installs/<name>.toml.

Sync the branch config

Syncing your app config creates or updates the branch, along with its deployment groups:

nuon apps sync

Branches are upserted by name and are never pruned. Removing a branch from your config does not delete it in Nuon. Use nuon apps branches delete for that. Confirm what Nuon now has:

nuon apps list                                   # find your app's ID
nuon apps branches list --app-id <your-app-id>
nuon apps branches get --app-id <your-app-id> --branch-id <branch-id>

list prints each branch’s name and ID; get takes the branch ID and returns the full branch, deployment groups included.

The nuon apps branches subcommands take the app ID (app...), which nuon apps list prints. Or select the app once with nuon apps select (no flags, pick from the list) and omit --app-id wherever it is optional.

Trigger a run

Once the branch exists, a push to the tracked branch is all it takes:

git commit -am "bump chart version"
git push origin main

Nuon receives the push, and the run appears in the dashboard and in nuon apps branches runs. You do not have to wait for a push, though. Two other ways to start a run, both using the app you selected with nuon apps select:

# Runs against the tracked branch's latest commit.
nuon apps branches trigger --branch-id main

# Plan only — plans every group, applies nothing.
nuon apps branches trigger --branch-id main --preview

# Rebuild every component instead of only what changed.
nuon apps branches trigger --branch-id main --force

# Syncs the config in the current directory, then triggers a run for that config.
nuon sync --branch main

# Same, but plan-only.
nuon sync --branch main --preview

# Pick the branch interactively.
nuon sync --app-branch

Anything that can run the CLI or call the API can start the same run, which is how a CI job drives a rollout without a webhook.

--preview on a manual run suppresses the apply, not the workflow. The run still creates plan install group: <name> and deploy install group: <name> for every group, but each approval gate auto-approves (“Auto-approved in plan-only mode”) and nothing is applied — the run finishes on its own, and you read the per-install diffs from the completed run. This differs from a pull request preview, which never creates the group steps at all.

nuon sync --branch runs against your local, uncommitted files, not the tracked branch’s commit — the right tool for iterating on a change before pushing it. The --branch, --app-branch, and --preview flags live on nuon sync (not nuon apps sync), and --preview takes effect alongside --branch or --app-branch.

Because nuon sync --branch hands Nuon a config it already built locally, that run’s first two steps appear as fetch commit (skipped) and fetch app config (skipped). A run started from a push or from nuon apps branches trigger fetches from git and shows both steps running. nuon apps branches trigger and nuon apps branches runs open the full-screen workflow TUI, so you can watch steps and approve from the terminal. See the TUI reference.

Approve or skip a deployment group

A run pauses at each group’s plan step until someone acts on it. In the dashboard, open the app’s Branches view, then the run, and you will see the Deployment plan with each group’s steps. For each group:

Approve install group plan — read the per-install diff, then approve to let the group’s deploy step run.
Skip install group — move the rollout past this group’s deploy without applying it.

The run stops at the next group’s plan step, so a multi-group rollout is a sequence of deliberate decisions rather than one irreversible action.

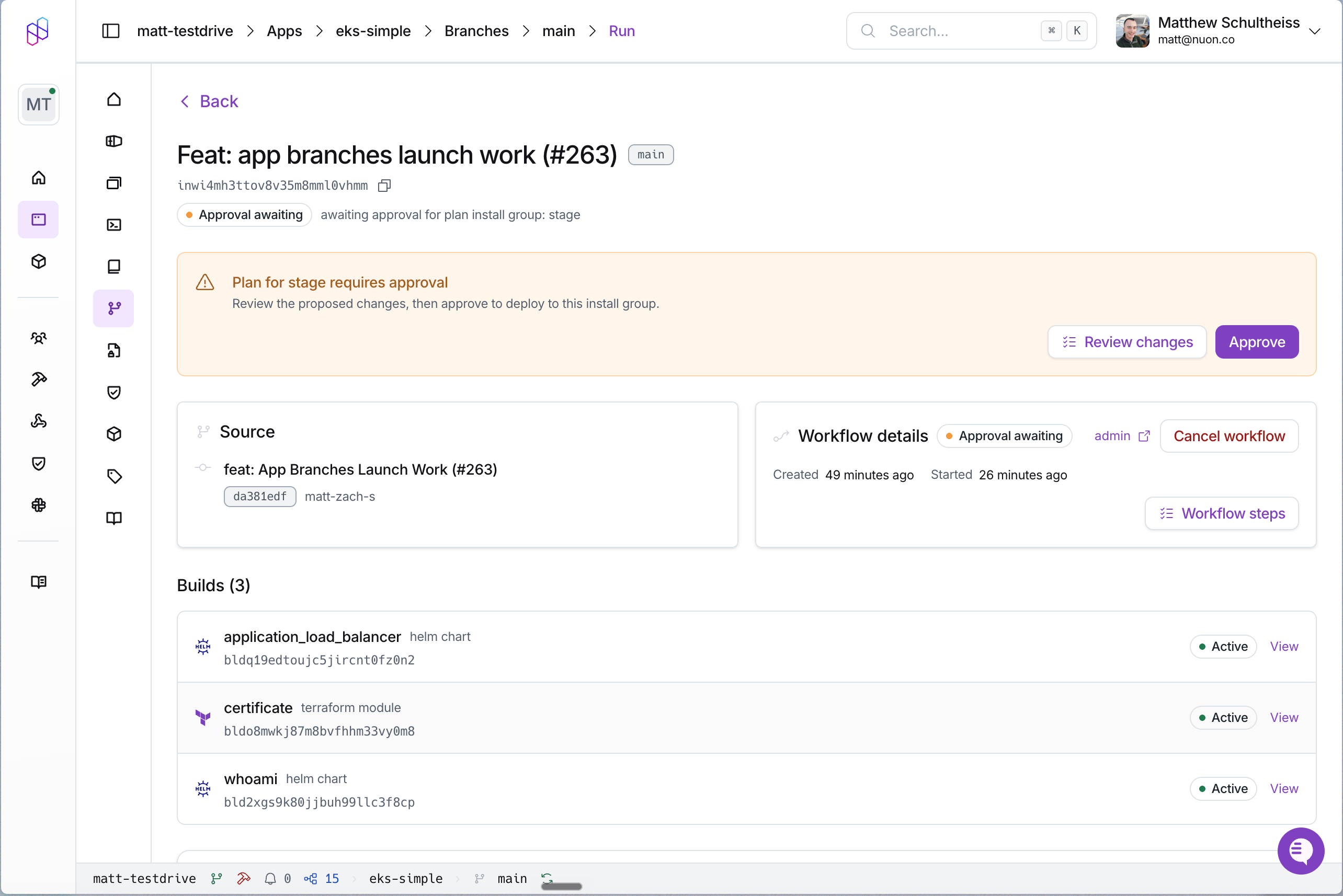

A branch run in the Nuon dashboard awaiting approval for the stage install group's plan, with Review changes and Approve actions and the run's component builds listed — A branch run holding at the stage gate: review the proposed changes, then approve to deploy to that group.

There is no setting that auto-approves a deployment group’s plan. Each one needs a human in the dashboard or an API caller. If you want a machine to advance a rollout, subscribe to the webhook events for the run and drive the approval through the API once your own checks pass.

Set up pull request previews

There is nothing to configure on the branch itself. Opening a pull request against a tracked branch, or pushing another commit to an open one, starts a plan-only run, and Nuon reports back on the pull request:

a comment headed ## Nuon Preview — <BranchName> (the branch’s name, so usually main) with a table of config changes by section, edited in place on each later push rather than added to.
a commit status with the context nuon/preview, moving from pending to success or failure.

If the pull request does not change the app config, the run stops early and the comment says so. What previews do need is a GitHub App connection in your org for the repository’s owner. Connect it once, from connecting a repository. After that, every branch tracking a repo under that owner gets previews. This is an org-level setting, not a property of the branch config: a [public_repo] branch pointing at acmeco/my-app gets previews just like a [connected_repo] one, provided your org has connected acmeco.

Previews start posting as soon as your org has the GitHub App connection for the repository’s owner. If they have not appeared yet, that connection is the thing to check — not your branch.toml.

To reproduce a preview locally before opening the pull request:

nuon sync --branch main --preview

Roll back when a change goes badly

Every config change to an install is recorded as an app config version, and any earlier version can be applied again, to one install or to a whole deployment group, with a plan in front of it. The rollback guide walks through the exact calls.

Command reference

Command	What it does
`nuon apps branches list --app-id <app-id>`	List an app’s branches. Alias: `nuon apps br`.
`nuon apps branches get --app-id <app-id> --branch-id <branch-id>`	Show a branch’s details, including its deployment groups. Takes an ID, not a name.
`nuon apps branches create --app-id <app-id> --name <name>`	Create a branch without syncing a config file.
`nuon apps branches trigger --branch-id <branch>`	Trigger a run. `--preview` for plan-only, `--force` to rebuild everything.
`nuon apps branches runs --branch-id <branch>`	List runs and open one in the workflow TUI.
`nuon apps branches delete --app-id <app-id> --branch-id <branch> --confirm`	Delete a branch.
`nuon sync --branch <name>`	Sync the current directory, then trigger a run for it. Add `--preview` for plan-only.
`nuon sync --app-branch`	Same, choosing the branch interactively.
`nuon installs labels set --install-id <install> k=v ...`	Set labels used by group selectors.
`nuon installs labels list --install-id <install>`	List an install’s labels.
`nuon installs labels unset --install-id <install> <key> ...`	Remove labels.
`nuon installs list --labels k=v`	Preview which installs a selector matches.

Troubleshooting

The branch synced but has no deployment groups. The branch config is missing its [connected_repo] / [public_repo] block. Add one and sync again. A push did not start a run. Branch matching is on the exact repository and branch name. Check that the branch’s branch value matches the ref you pushed and that the repo is the one Nuon has connected. There are no path filters, so a push that matches always starts a run. If nothing happened, the match itself failed. The pull request has no Nuon comment. Your org has no GitHub App connection for that repository’s owner. The preview run itself succeeds and this is not reported as an error, so check the connection rather than the branch config. Note this is about the owner, not the branch’s repo block. A [public_repo] branch is fine if the owner is connected. A sync failed on an install name. install_names must resolve to installs that exist in the org you are syncing into. Switch the group to a label_selector, or create the install first. A group deployed to nothing. No install carried the selector’s labels. Check with nuon installs list --labels ....
